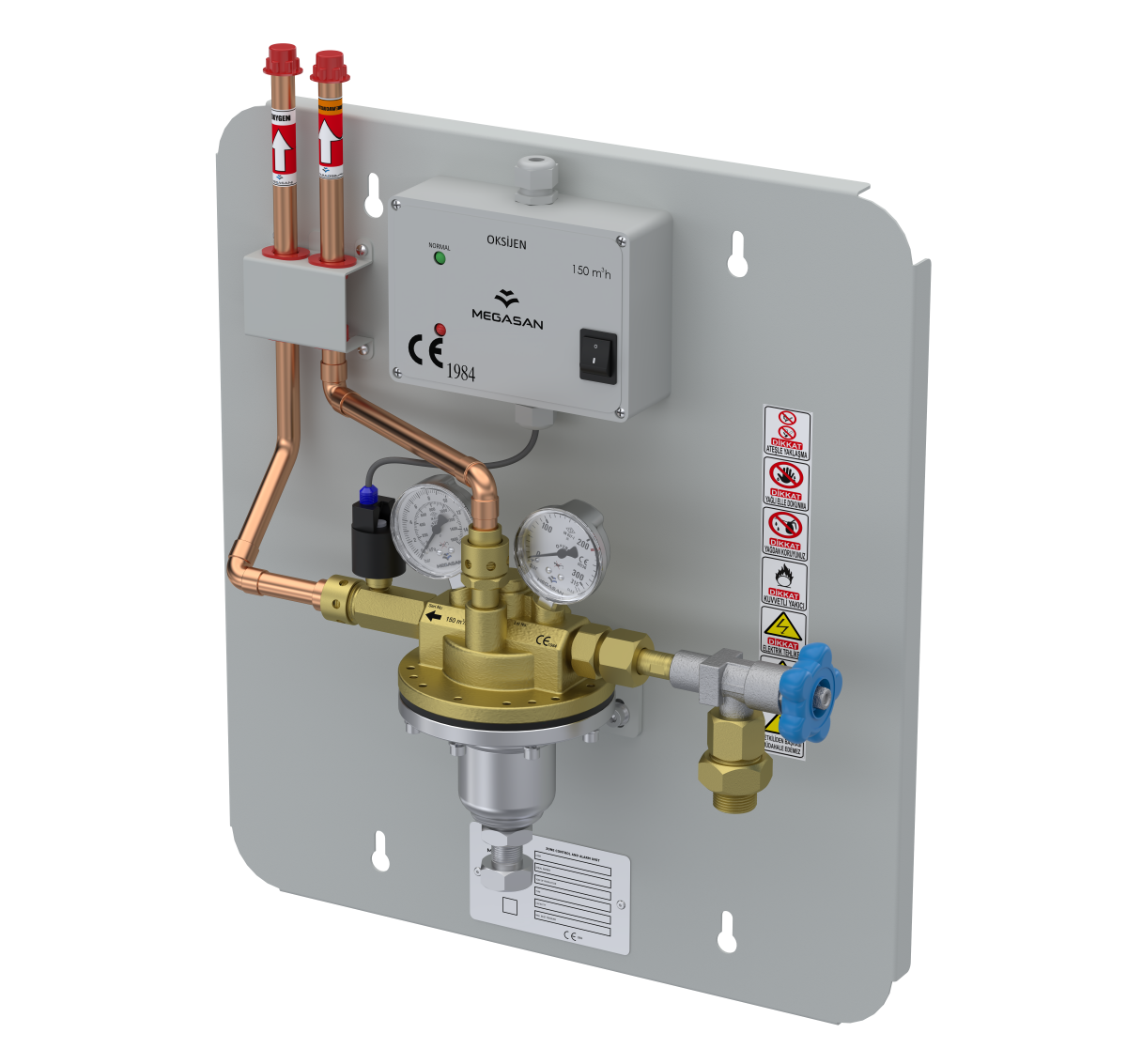

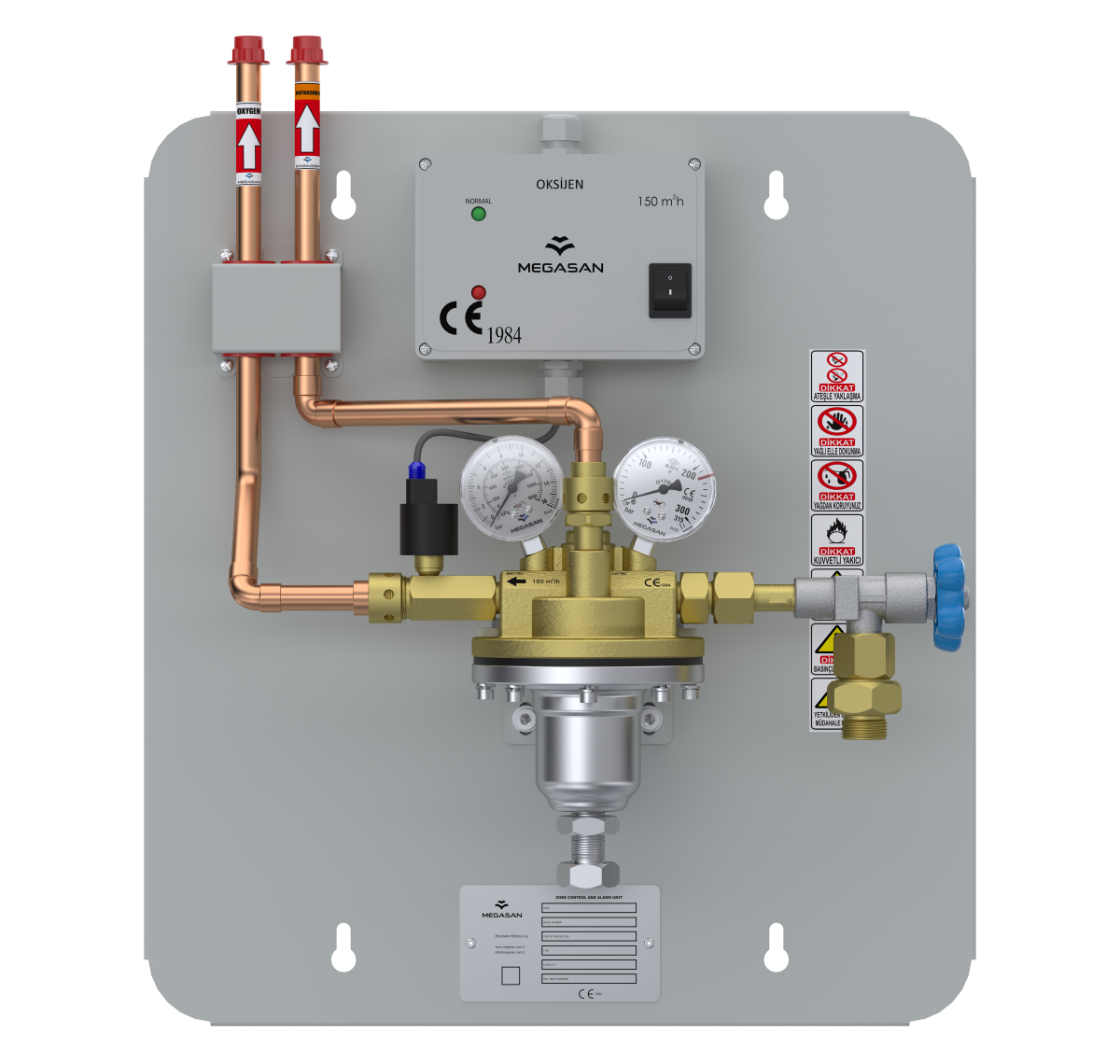

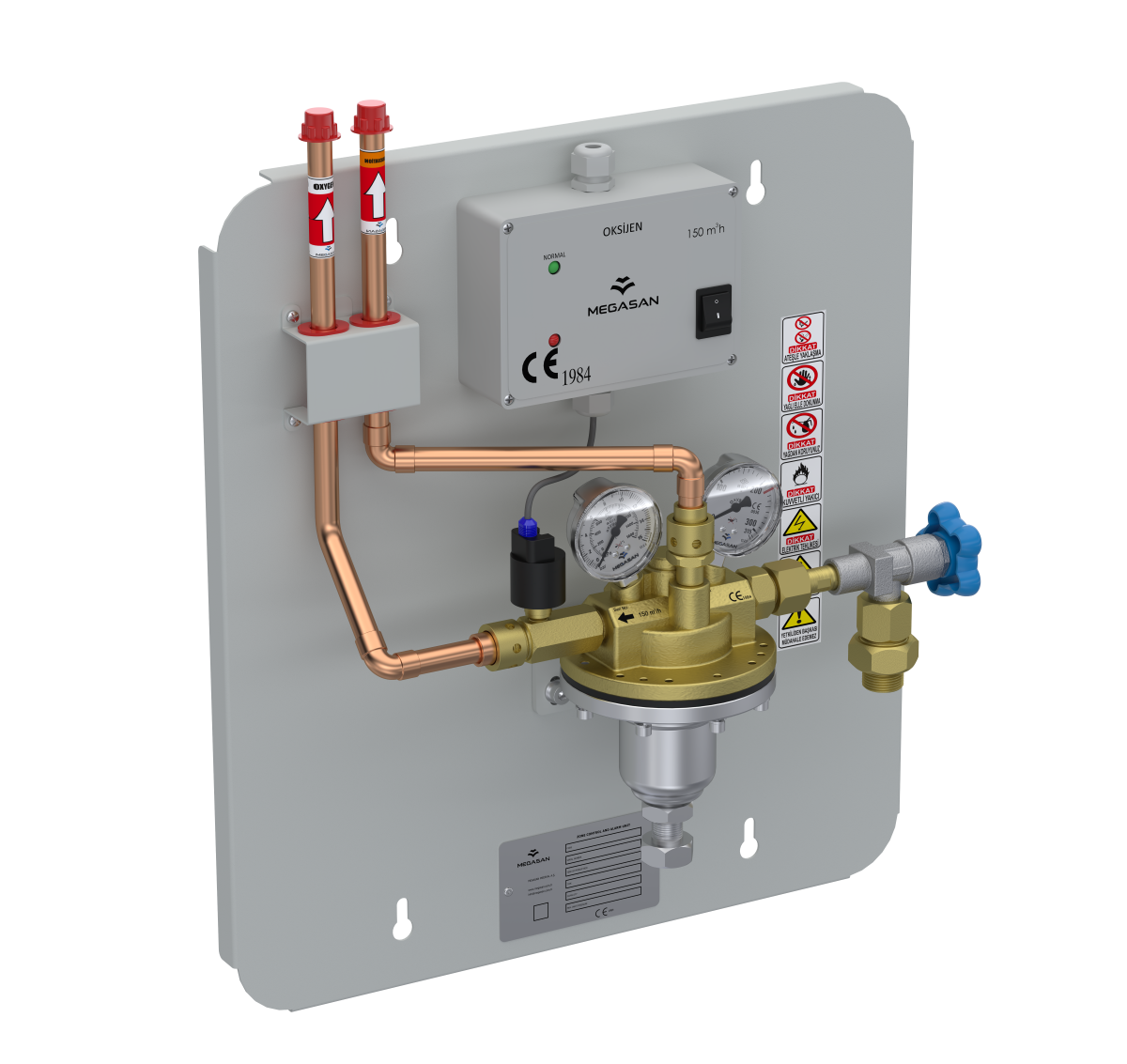

Single High Pressure Reducer Unit

Single High Pressure Reducer Unit ensure that the pressure of medical gases (O2 , CO2 , N2 O, compressed air) coming at high pressure (230 bar) through collectors connected to gas cylinders is adjusted to the required pressure values and safely supplied to the installation. It is mostly reduced to 4-8 Bar values.

Product Code: MG-YBDTx

Intended Use

It ensures that the pressure of the medical gases needed in hospital installations is brought to the ideal values and the installation is fed. In general, it acts as a backup of the fully automatic oxygen plant. It is connected to the installation of the relevant gas with bypass in parallel with the fully automatic high pressure converter. It ensures the continuity of the supply of the installation in case of failure or servicemaintenance of the fully automatic high pressure reducer. It can also be used individually in places that do not require intensive gas utilisation.

Technical Specifications

Product Code : MG-YBDTx

“x:O (Oxygen), A (N2O), SA (Pure Nitrogen), KG (Mixed Gas), K (CO2),H (Dry Air)”

Product Name : Single High Pressure Reducer Unit

Input Pressure : Max. 230 Bar

Output pressure : 4 – 8 Bar

Capacity : 220m³/h Input Number :1

Operating Temperature Value : (+10) – (+45) C°

Power Supply : 200-240 V 50-60 Hz 100

Watt Package Type : Carton Box

Package Sizes : 65 x 58 x 21 cm

Alarm System : Visual and Sensory alarm
