Product Code                                   : MG-VSEx-y    ”x:40,70,100,150,250,… y:2,3…”

Product Name                                  : Medical Vacuum Plant Elit Model

Number of Pumps                           : Min. 2

Pump Capacity                                : 25,40,60,106, 205,305… m3 /h

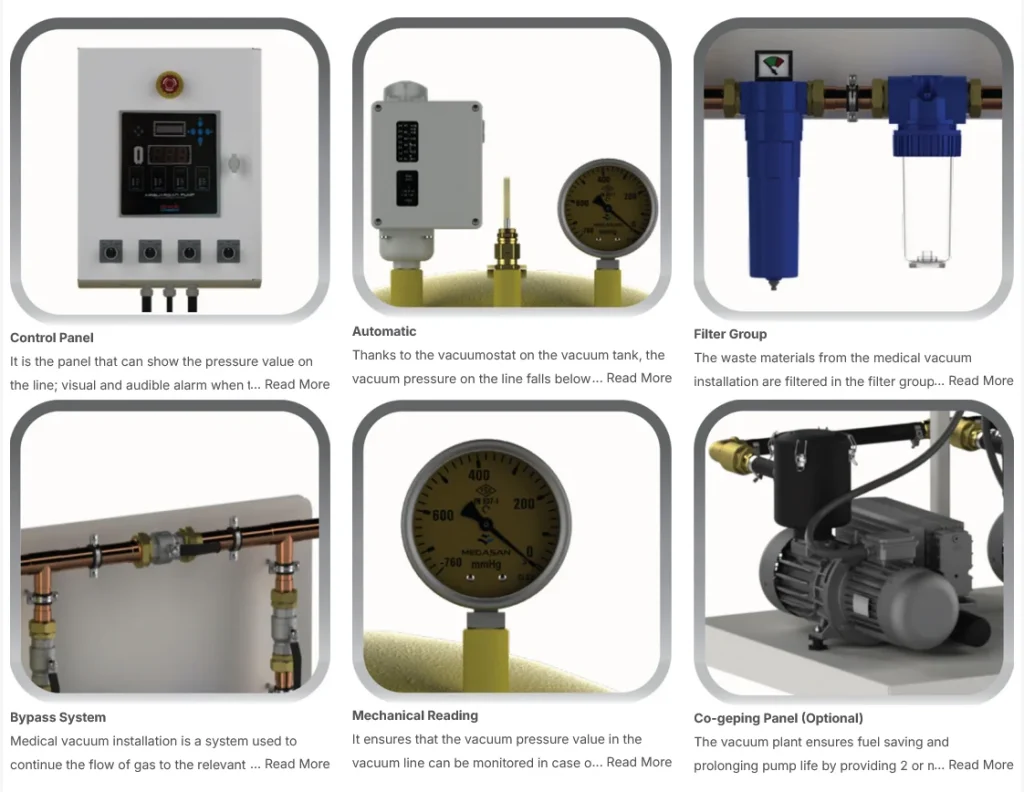

Control Panel                                   : Operating (Pump) hour equalization by PLC

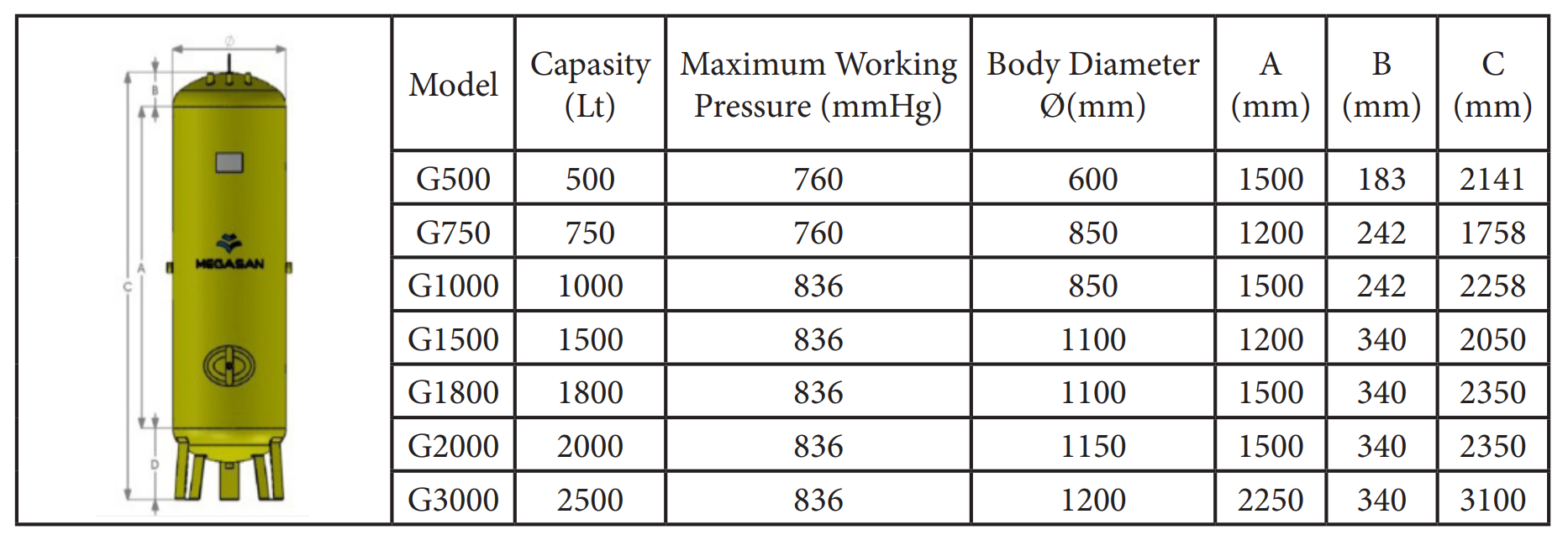

Tank Capacity                                  : 500,1000,1500,2000…Lt. (According to project and the capacity of plant)

Operating Temp.                              : (+10) – (+45) C°

Power Supply                                  : 3Ø, 380VAC, 50 Hz

Collecting Jar                                  :1 Pcs with By-Pass System

Filter Group                                     : 2x Vacuum Bacteria Filters with By-Pass System

Package Sizes                                  : 88x118x140cm (For MG-VS70-2) & Tank

Product Weight                               : Main Unit 280 Kg. (For MG-VS70-2) & Tank
